Buying an IMEON is a way to anticipate the future. With an embedded artificial intelligence,
IMEON will evolve with the tools of tomorrow. No more obsolescence!
A flexible architecture to allow a wide range of storage capacities ranging from 2KWh to 15KWh per IMEON.
The integrated WiFi means local or remote control of the IMEON through overhauled monitoring interface.
IMEON has the ability to integrate new technical developments and regulatory changes thanks to its new architecture and specialized applications.
Thanks to its Artificial Intelligence implanted in the heart of a 32-bit Texas Instruments ARM Cortex processor with 8 GB of storage, IMEON has unmatched capabilities!
Self-consumption, back-up, isolated site, grid connected site, Virtual Power Plant…IMEON is the solution ready to function in all scenarios.
IMEON instantly secures the power supply of your essential devices (lighting, WiFi, freezer, water heater…).
ACCESSORIES FOR IMEON 9.12
Imeon 3.6 is associated with a range of accessories and a reliable and secure connection to simplify the installation. Robust and practical, these accessories contribute to the high quality of our inverters
Download your favourite apps!
Imeon Energy is constantly developing applications to help you get the most of your energy manager’s capabilities.
Some applications will be particularly appreciated for residential installations in order to optimize the initial investment. These applications will allow your IMEON to integrate the latest technologies.
With IMEON, you will be astonished and impressed by the possibilities of your inverter!

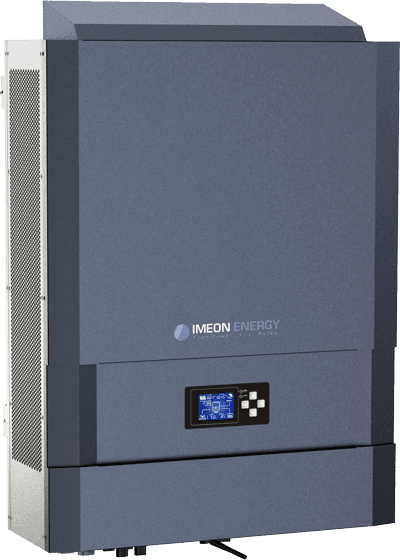

IMEON 9.12 TECHNICAL SPECIFICATIONS
GRID AC (ON-GRID & OFF-GRID)
Rated output power
Maximum output power (3 sec)
AC voltage / Frequency (input & output)
3/N/PE; 230/400 Vac (±15 %) / 50 Hz, 60 Hz (±5 Hz)
Nominal output current
13 A / phase
Maximum input current
17,5 A / phase
Feed in to grid
Programmable (yes by default)
Energy consumption priorities
Programmable (PV / Storage / Grid)
Maximum input power
Up to 12 000 Wp (1)
Number of MPPT inputs
MPPT voltage range
380 V – 750 V
Maximum input current
2 x 18 A
Maximum input voltage
DC to AC : >95,5% (94,5% EU)
BATTERY & CHARGE
DC nominal voltage
Maximum discharge current
Maximum charging current
Type of batteries
3-phase (Bulk / Absorption / Float)
PV -> batterie : >94% / Batterie <–> AC : >93%
Programmable (threshold / timing: multiple range by AC Grid)
Programmable ( 2 thresholds according to grid availability)
Dimensions (w x h x d)
580 x 800 x 240 mm / 22.85 x 31.5 x 9.45 inch
IP 20 (indoor installation)
Smart grid / Back up – UPS / Off grid / On grid / VPP Ready
OS / Processor
OS: Linux Debian 8.7 Jessie – CPU: ARM Cortex (Texas Instrument) 32 bits
RAM : 8 GO of storage – Artificial Intelligence Inside – IOT Ready
I / O Connectors
Wifi 802.11 b/g/n 2.4 GHz – 2 USB 2 – 1 Ethernet IP
1 CAN bus – 2 RS485 – 1 relay 230 V 16A
4 analog inputs : 1 temperature probe – 3 electrical measurements
Conditions of use
Humidity level: 0 to 90% without condensation
T°C : -20 to + 50°C, degressive power >40°C (15W/°C)
EN 62109-2 / EN 62109-1 / EN 62040-1 / DIN V VDE V 0126-1-1 (+VFR2013) / VDE-AR-N 4105 / EN 50438 DIN VDE V 0124-100 / Synergrid C10/11 / TF3.2.1 / AS4777.2 / AS4777.3 / NRS 097-2-1 / G83 / RD 1699
10 years (3) / Extension to 20 years (optional)
